Beschrijving

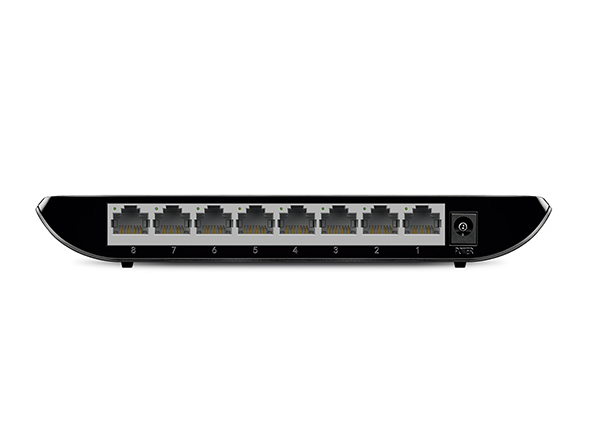

8 Gigabit Auto-Negotiation RJ45-poorten, ondersteunt Auto MDI/MDIX
Groene ethernet-technologie bespaart tot 80% energie
Plastic behuizing, desktop of wandmontage
Plug-and-Play, geen configuratie nodig
| FUNCTIONALITEIT VAN DE HARDWARE | |
|---|---|
| Standaarden en protocollen | IEEE 802.3i/802.3u/ 802.3ab/802.3x |
| Interface | 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Ventilator Aantal | Fanless |
| Energieverbruik | Maximum: 4.63W (220V/50Hz) |
| Externe Voeding | 9VDC / 0.6A |
| Jumbo Frame | 15 K |
| Doorschakelcapaciteit | 16 Gbps |
| Afmetingen ( B x D x H ) | 7.1 * 3.5 * 1.0 in. (180 * 90 * 25.5 mm) |
| Max Power Consumption | 4.63W(220V/50Hz) |
| Max Heat Dissipation | 15.80BTU/h |
| FUNCTIONALITEIT VAN DE SOFTWARE | |
|---|---|
| Overdrachtsmethode | Store and Forward |
| Adressentabel MAC | 4K |
| Geavanceerde Functies | Green Technology, saving power up to 80% 802.3X Flow Control, Back Pressure Auto-Uplink Every Port |
| OVERIGE | |
|---|---|
| Certificatie | FCC, CE, RoHs |
| Pakketinhoud | 8-Port Gigabit Desktop Switch Power Adapter User Guide |
| Systeemvereisten | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux. |
| Omgeving | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
